Heartbeat LED Indicator in the SCU6x Controller: Your Troubleshooting Companion This video dives into the critical Heartbeat LED indicator found in the SCU6x controller. Learn how this small light plays a major role in monitoring the health of your system and aiding in troubleshooting. We'll explore: Heartbeat LED Location: Find the Heartbeat LED on your SCU6x controller. Blinking Pattern and Meaning: Understand what the blinking red and green (or green and no light) pattern signifies. Communication Status: Discover how the Heartbeat LED reflects the communication between the motherboard and the operator interface. Troubleshooting Aid: See how the absence of the Heartbeat LED's blinking can pinpoint issues with the touchscreen or communication. Don't overlook this simple yet essential indicator! The Heartbeat LED is your first line of defense when troubleshooting your SCU6x controller.
Transcript
Show full transcript (216 words)

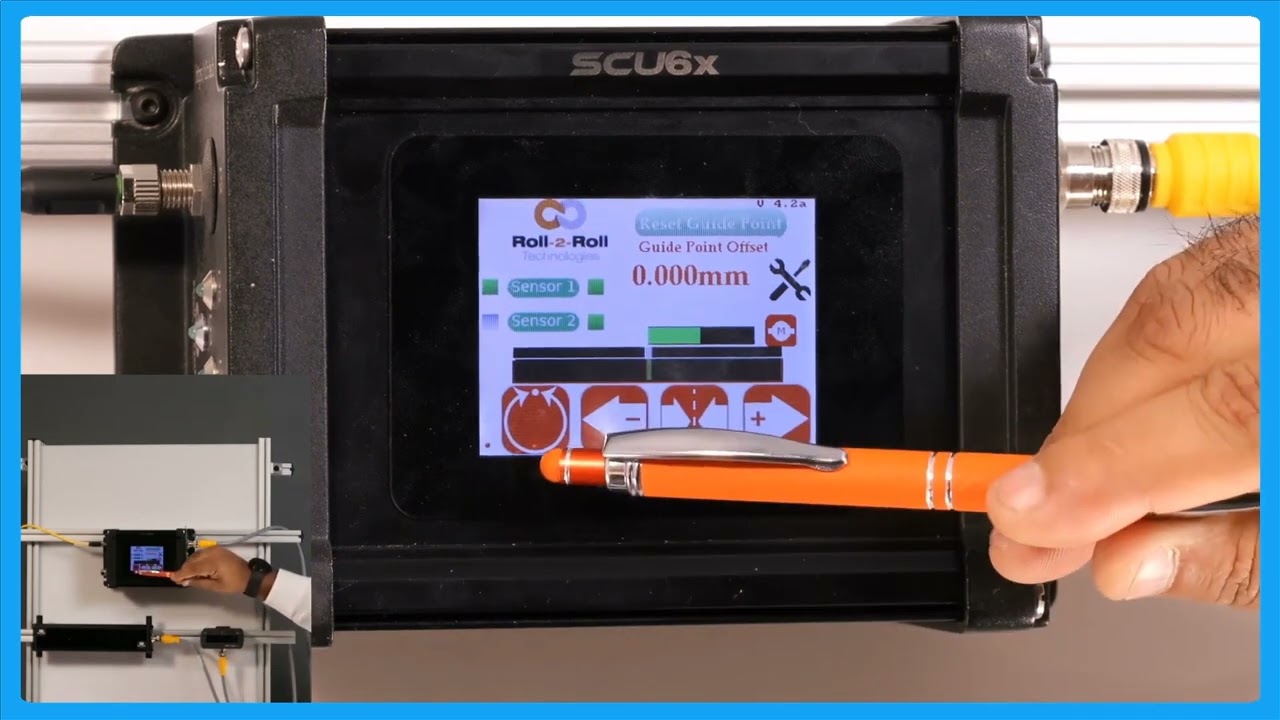

[Music] first and foremost thing that I want to point out is what we call as the heartbeat LED this is basically the bottom left hand corner and this particular LED is blinking between red and green in the seu 6X there's actually another led a physical LED that's available on the side which is label B zero and that will also blink between green and no no light so we call it a heartbeat which means that this is very critical and we want to make sure that this led is blinking all the time so this is again one of those things which is used for troubleshooting purposes if you call us and say hey something is happening nothing is working when we touch the um operator interface the first thing that we're going to ask is that hey is this heartbeat LED blinking and what it is indicating is that there is the program the motherboard is running and the motherboard is communicating back to the operator interface and and the motherboard if there is no communication between the display and the motherboard then this led would stop blinking so that's a good good indication to say that there's something wrong with just the touchscreen operator interface the motherboard is still working fine
